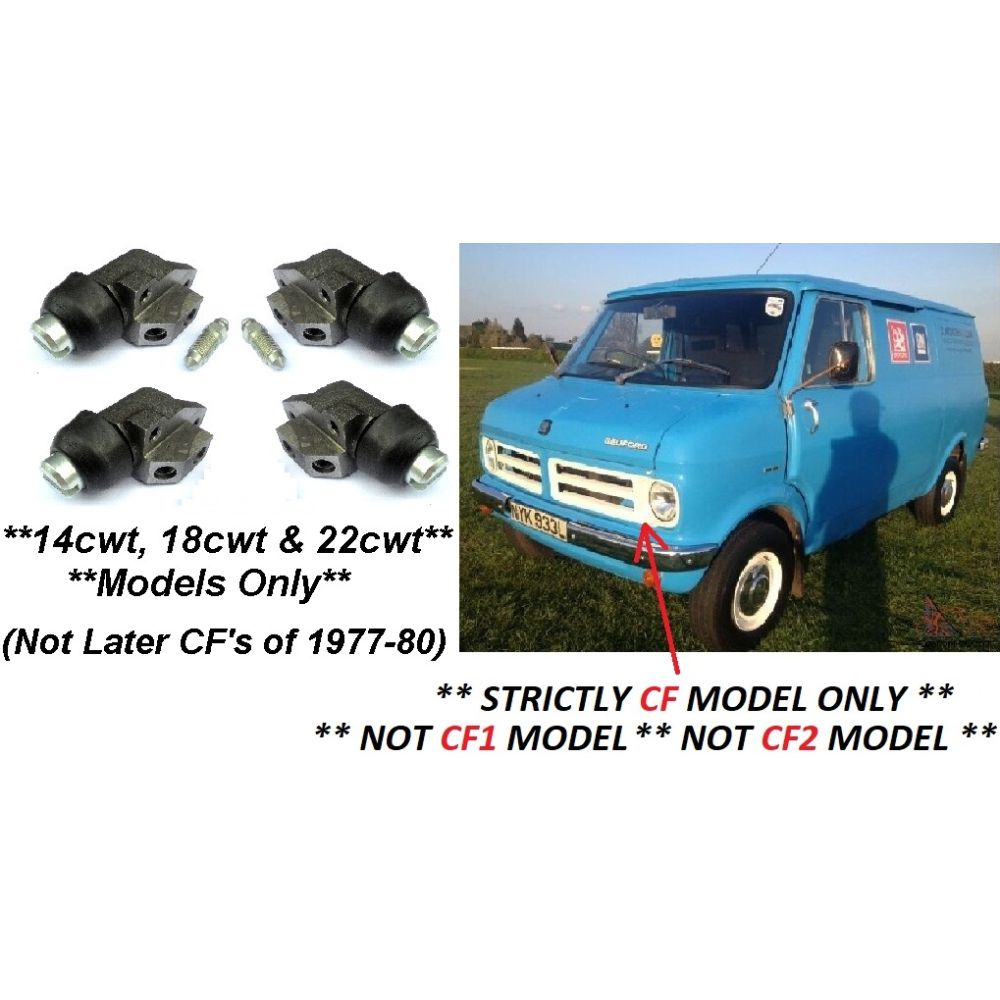

FRONT BRAKE WHEEL CYLINDERS x4 (Bedford CF Van) (**14,18 & 22 cwt Only**) (**1969- 77 Only**)

Here's a new set of Front Brake Wheel Cylinders (x4) (0.8") for the following models from Bedford-

BEDFORD

Bedford CF Van (**1969- 77 Only**)

(**Only CF 14cwt, CF 18cwt & CF 22cwt Models**)

(** Not for the CF 25cwt & 30cwt Models of 196-77 which used larger 7/8" Bore front wheel cylinders**)

(** Not for the last few years of CF Van in 1977- 80 which all used larger 7/8" OR 15/16" Bore Front wheel cylinders**)

(** Do NOT Buy these for the later Square Shaped CF1 Van of 1980- 84 **)

(**Do NOT Buy these for the later Square Shaped CF2 Van of 1984- 87 **)

These Cylinders are 0.8” Bore - Get your old cylinders out and measure if unsure.

Further Useful Info -

14,18 & 22 cwt of 1969- 77 had 9" Internal Diameter Front Drums.

25,35 cwt of 1969- 77 had 10" Internal Diameter Front Drums.

220 18cwt of 1977- 80 had 9" Internal Diameter Front Drums.
